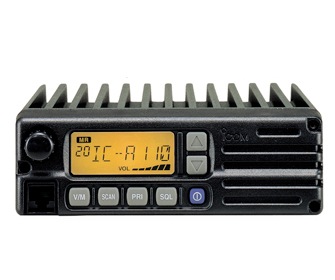

VHF AIR BAND TRANSCEIVERS IC-A110EURO
Rugged and reliable for serious ground crew communications
Capable for use in any vehicle
The IC-A110EURO are adaptable to vehicles working on a 12V, as well as a 24V power source.
Front mounted loud speaker
A loud speaker mounted in front of the transceiver is free of any obstacles blocking audio reproduction, and, provides loud and clear audio.
Dial selection
With a simple rotation of the dial, frequently used memory channels, or desired frequency selection can be made.
Memory channel name display
Up to 7-character memory names can be assigned for each of the 99 channels. Allows simple and quick channel recognition and selection.
Side tone function
The operator’s transmitted messages and calls are audio modulated and can be heard by standard airband headsets*, even in the most demanding airport operating conditions.
* Option OPC-871 is required.
Convenient on hook scan functions
Hanging the microphone on the microphone hanger activates the auto scan function. When released, the transceiver will return to the last used, or priority channel, depending on the selection.
Usable in extreme cold
The adopted LCD is guaranteed usable in temperatures from –30°C to +70°C (–22°F to +158°F). Normal performance, as well as display indications, are guaranteed even in extremely cold areas.
Other features
- Extra 8.33kHz channel spacing version available
- Various scan functions, such as VFO and priority scans
- A total of 99 memory channels are available
- 36W (PEP) of powerful output
- Ideal compact size of 150(W)×50(H)×180(D) mm* to mount in various types of vehicles
HAND MICROPHONE
| HM-161 | | | |
| OPC-871 |
| IC-A110EURO | ||
| Frequency range | Tx: | 118.000–136.975 MHz | Rx: | 118.000–136.975 MHz |
Number of memory channels | 99ch | ||
Channel spacing | 25kHz/8.33kHz | ||
Power supply requirements | 13.75V or 27.5V DC | ||
Current drain | Tx | 5.0A Max. | Rx | Stand-by | 500mA | Max. audio | 4.0A |
Dimensions (W×H×D) | 150×50×180 mm | ||
Weight | 1.5kg | ||
Operating temperature range | –20°C to +55°C | ||
Frequency stability | ±1ppm (0°C to +40°C) | ||
| IC-A110EURO |
| RF output power | 36/9W typ. (PEP/Carrier) |
Microphone impedance | 600Ω |
| IC-A110EURO |
| Sensitivity | 5dBμV (12dB SINAD) |
Spurious response rejection | 70dB |
Audio output power | 10W typ. with an 8Ω load |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 E Method, Proc. |
| Low Pressure Storage | 500.3 I |
Low Pressure Operation | 500.3 II |
High Temperature Storage | 501.3 I |
High Temperature Operation | 501.3 II |
Low Temperature Storage | 502.3 I |
Low Temperature Operation | 502.3 II |
Temperature Shock | 503.3 I |
Solar Radiation | 505.3 I |
Rain Blowing | 506.3 I |
Rain Drip | 506.3 II |
Humidity | 507.3 II, III |
Salt Fog | 509.3 |
Dust Blowing | 510.3 I |
Vibration | 514.4 I |
Shock Functional | 516.4 I |
Shock Transit Drop | 516.4 IV |
Also meets equivalent MIL STD 810 -C and -D.
All stated specifications are subject to change without notice or obligation.
