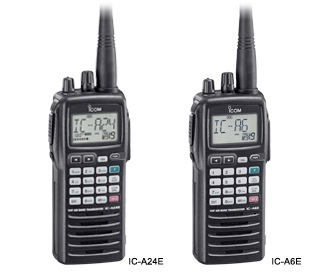

VHF AIR BAND TRANSCEIVERS IC-A24E / IC-A6E
The pilot's favorite handhend is here!
Easy to use while flying
Simple one-handed operation is the most essential feature of the IC-A24E/A6E. The well labeled, large keypad provides user friendly operation. The large display shows both letters and numbers and is easy to see, making for fast frequency recognition. The display is backlit, and so is the keypad. The light stays on until you turn it off a very handy feature for fl ying at night.
“Flip-flop” channel recall
The IC-A24E/A6E stores the last 10 channels used. You can easily recall those channels by pushing the “flip-flop” recall
buttons on the front panel. It is convenient for switching between several channels, such as NAV and COM channels.VOR navigation*
The IC-A24E has VOR navigation functions. The DVOR mode shows the radial to or from a VOR station and the CDI mode shows the course deviation to/from a VOR station. You can also input your intended radial to/from the VOR station and show the course deviation on the display.
* IC-A24E only
External DC power jack
An external DC power jack allows for operation with the wall charger, BC-110 or the cigarette lighter cable, CP-20. When the battery pack is installed, simultaneous charging during operation is also possible. In addition, an optional battery case, BP-208N, is available.
Other features
- IPX4 water resistant construction.
- 200 memory channels (20 Ch × 10 banks) with 6 character names
- Dedicated 121.5MHz emergency key
- Side tone function allows you to hear your own voice via an external aviation headset.
- Optional Ni-Cd and Ni-MH battery packs
- Tag scanning and memory bank scanning
- ANL (Auto Noise Limiter) for noise reduction
BATTERY PACKS
| BP-209N | Ni-Cd:7.2V/1100mAh
| BP-210N | Ni-MH:7.2V/1650mAh | |
| BP-208N | AA (LR6)×6 cells | | |
| BC-167S | | | |
| BC-119N | Rapid charger
| BC-144N | Rapid charger
| BC-121N | Rapid multi-charger |
| BC-145S | (Use with BC-119N/BC-144N)
| BC-157S | (Use with BC-121N) | |
| AD-101 | (Use with BC-119N/BC-121N) | | |
| OPC-515L | (Use with BC-119N)
| OPC-656 | (Use with BC-121N) | |
| CP-20 | | | |
| HM-173 | | | |
| OPC-499 | | | |
| MB-86 |
| MB-103 | | |
| MB-96F | (Use with MB-103)
| MB-96N | | |
| LC-159 | | | |
| FA-B02AR | | | |
General
| IC-A24E / A6E | ||
| Frequency range | Tx | 118.000–136.975 MHz | Rx | 108.000–136.975 MHz (IC-A24E) |
Number of memory channels | 200ch (20ch × 10 banks) | ||
Channel spacing | 25kHz | ||
Power supply requirements | 7.4/7.2V DC (Battery pack), | ||
Current drain | Tx | high: 1.5A typ. | Rx | Stand-by | 70mA typ. | Max. audio | 300mA typ. |
Dimensions (W×H×D) | 54×129.3×35.5 mm | ||
Weight | 430g | ||
Operating temperature range | –20°C to +55°C | ||
Frequency stability | ±5ppm | ||
| IC-A24E / A6E | |
| RF output power | 3.6/1.0W typ. (PEP/Carrier) | |
Microphone impedance | 100kΩ | |
| IC-A24E / A6E | |
| Sensitivity | VOR –3dBμ typ. (6dB S/N) | |
Selectivity | 7.5kHz/–6dB | |
Spurious response rejection | 70dB | |
Audio output power | 500mW typ. with an 8Ω load | |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Drip | 506.4 III |
Humidity | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
