HF TRANSCEIVER IC-M802 General Version

Pasted Graphic

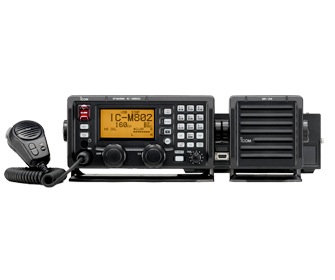

Advanced DSP marine radio with compact remote head
Digital Signal Processor
The digital IF filter provides flexible filter settings for narrow bandwidth signals without having to install an optional filter.
Large LCD with dot-matrix characters
The IC-M802 has the capability of up to 24 characters × 9 lines full dot-matrix display. Operating status and setting of information can be seen instantly and clearly.
Built-in 2-tone Alarm function
A 2-tone alarm (2182kHz) signal can be transmitted simply by the push of the 'Alarm' button. A spring loaded cover prevents accidental activation.
Automatic antenna tuner, AT-140
The optional AT-140 easily connects to the radio without opening the casing. The tuner through function can be used with the AT-140.
Other features
  • 4×8-inch remote controller and 4×4-inch external speaker
  • Channel and Group dials offer easy channel selection and operation
  • Powerful 150W (PEP) output
  • 0.5 to 29.9999MHz wideband receiver
  • DIN and RS-232C connectors for external equipment
  • NMEA 0183 interface included

FOLDED DIPOLE ANTENNA
AH-710
AH-710



ANTENNA MATCHERS
MN-100
MN-100
MN-100L
MN-100L


ANTENNA TUNERS
AT-130
AT-130
AT-140
AT-140


SHIELDED CONTROL CABLES
no_photo
(Use with AT-130)
OPC-566
OPC-1147_N
10m; 32.8ft
(Use with AT-140)
OPC-1147/N


HAND MICROPHONE
HM-135
HM-135



EXTERNAL SPEAKER
SP-24_E
SP-24



FLUSH MOUNT KIT
MB-75
MB-75



REMOTE CONTROLLER
no_photo
RC-25



SEPARATION CABLE
OPC-1106
5m; 16.4ft

OPC-1106


7/16×311/16×93/8 in

Controller unit:
220×110×84.4 mm;
821/32×411/32×35/16 in



IC-M802 General version
Frequency range
Tx

1.6–2.9999 MHz
4.0–4.9999 MHz
6.0–6.9999 MHz
8.0–8.9999 MHz
12.0–13.9999 MHz
16.0–17.9999 MHz
18.0–19.9999 MHz
22.0–22.9999 MHz
25.0–27.5000 MHz

Rx

0.5–29.9999 MHz

Power supply requirement

13.6V DC ±15% (negative ground)

Dimensions (W×H×D)
(Projections not included)

Main unit:
240×94×238.4 mm;
9

Weight (approx.)

Main unit:
4.7kg; 10.4lb,

Controller unit:
570g; 1.3lb

Current drain (approx.)

Transmit (High)

30A typ. at max. power

Max. audio output

3.0A

Sensitivity

J3E, A1A, J2B, F1B
(at 10dB S/N; 1.8–29.999MHz)

0.5μV

H3E
(at 10dB S/N; 1.8–3.999MHz)

3.2μV

Selectivity

J3E, R3E, J2B, A1A

2.4kHz/–6dB
3.6kHz/–60dB

Audio output powe (10% dist/ 4Ω load)

4.0W

RF output power (PEP)
(output power differs depending on version)

150/60/20W


All stated specifications are subject to change without notice or obligation.
