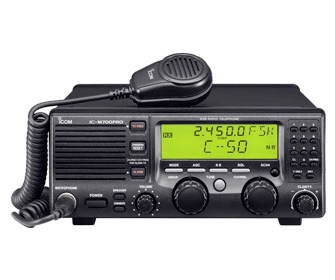

HF TRANSCEIVER IC-M700PRO

Pasted Graphic

A favorite among SSB marine radio operators
Simplified operation
Channel selection is quick and easy to access with large, independent Group and Channel knobs. Each panel button has only 1 function. The large easy to read display shows channel (or frequency) and operating status at a glance.
Data operation capability
The powerful 150W* (PEP) transmitter provides long distance communication, and ensures that power is always available to you-even during demanding RTTY (radio teletype) or e-mail operation.
*60W (PEP) above 24MHz bands.
Other features
  • Optional automatic antenna tuner, AT-140/AT-130, matches the radio to your antenna
  • 0.5 to 29.9999MHz wide band general coverage receive
  • Channel knob allows the user to tune specific frequencies around a memory channel
  • 2 DIN connectors for external equipment connection-linear amplifier, FSK terminal, e-mail modem, etc.
  • 2-tone alarm built-in (Optional depending on version)
  • NMEA 0183 interface included

FOLDED DIPOLE ANTENNA
AH-710
AH-710



ANTENNA MATCHERS
MN-100
MN-100
MN-100L
MN-100L


ANTENNA TUNERS
AT-130
AT-130
AT-140
AT-140


SHIELDED CONTROL CABLES
no_photo
(Use with AT-130)
OPC-566
OPC-1147_N
10m; 32.8ft
(Use with AT-140)
OPC-1147/N


HANDSET
HS-50
HS-50



HAND MICROPHONES
HM-180
HM-180



CW/RTTY (FSK) NARROW FILTER
FL-100
CW/RTTY (FSK)
NARROW FILTER
500Hz/-6dB
FL-100



2-TONE ALARM UNIT
no_photo
2-TONE ALARM UNIT Provides an alarm function.
(Already built-in to some versions)
UT-95

15/32×419/32×1213/32 in



IC-M700PRO
Frequency range
Tx

1.6–2.9999 MHz
4.0–4.9999 MHz
6.0–6.9999 MHz
8.0–8.9999 MHz
12.0–13.9999 MHz
16.0–17.9999 MHz
18.0–19.9999 MHz
22.0–22.9999 MHz
25.0–27.5000 MHz

Rx

0.5–29.9999 MHz

Power supply requirement

13.6V DC ±15% (negative ground)

Dimensions (W×H×D)
(Projections not included)

291.4×116.4×315 mm
11

Weight (approx.)

7.9kg; 17.4lb

Current drain (approx.)

Transmit (High)

30A at max. power

Max. audio output

2.5A

Sensitivity
(at 10dB S/N; 1.8–29.999MHz)

J3E, J2B, R3E, A1A
(12dB SINAD)

0.5μV typ.

H3E

2.2μV typ.

Selectivity

J3E, R3E, J2B, A1A

2.3kHz/–6dB
4.2kHz/–60dB

Audio output powe (10% dist/ 4Ω load)

5W typical

RF output power (PEP)
(output power differs depending on version)

150/60/20W (below 24MHz)
60/20W (above 24MHz)


All stated specifications are subject to change without notice or obligation.
