Satellite Networks Benefits

High flexibility
Fast deployment
Coverage, any location
Distance/location independent cost
High reliability > 99,9%
Single source networks offering seamless high
QoS for the complete networks
Ability to support broadcast/multicast services efficiently

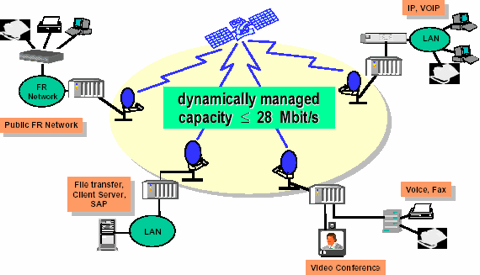

SkyWAN® based Satellite Network


satellite_network

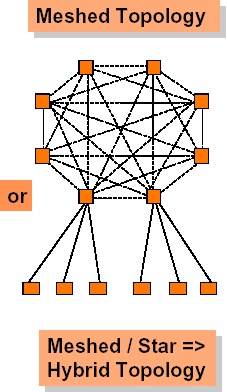

SkyWAN® Network Configurations

Pasted Graphic 1

Single hob connections offering

minimum latency
minimum transmission cost

Any to any communication
High flexibility
No single point of failures
(redundant NMC stand-by)
Low start-up cost for small to
medium networks
Down size station according
their specific needs e.g. data
rates, location

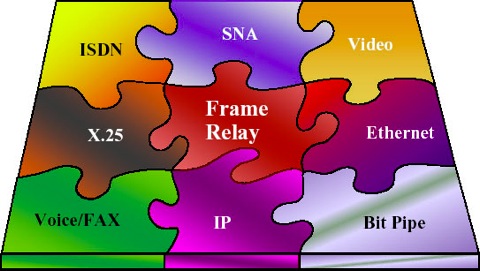

Frame Relay Technology


WAN® integration into given corporate network enviroment

Sky

frame_relay


skywan_schuessel
red_dot



Frame Relay network
via satellite
red_dot

Economical use of bandwidth
red_dot


Hubless system, any to any
connectivity (fully meshed)
red_dot



High performance data and
voice communication
(up to 8 x 3,5 Mbit/s)
red_dot

Ku or C-Band

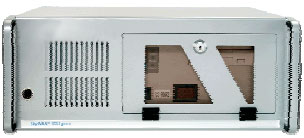

skywan_rechner
red_dot

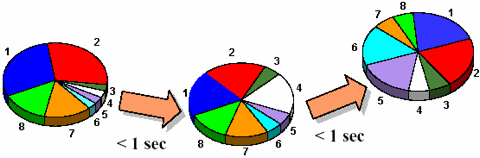

Dynamic Channel Access Protocol


Example of Channel Capacity Allotment (8 Stations)
1.8 m - 4.6 m Antenna
red_dot
100 % of the bandwidth is accessible

blue_line  No PAMA e.g. for telephone or video
dynamic_channel

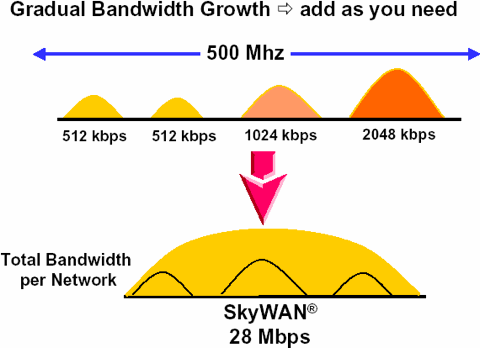

Scalable Bandwidth


bandwith

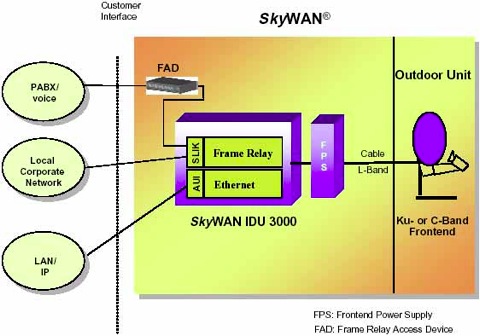

SkyWAN® Node Architecture


node_architecture

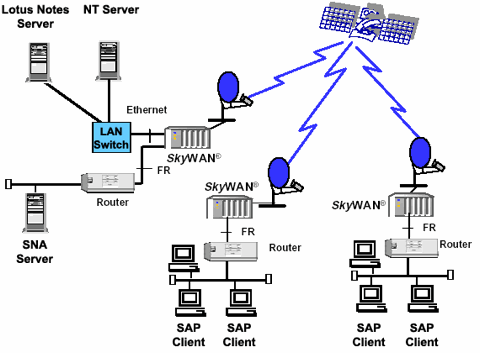

Data Applications: Client Server


client_server

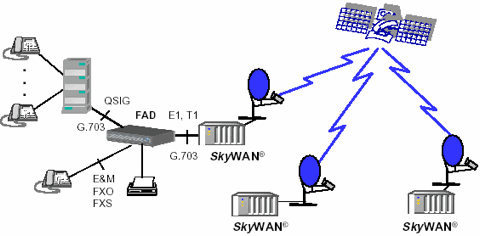

Voice Applications


voice_applications
red_dot

Support of voice via FAD 9400, FAD 9350, FAD 9360, FAD 9380
red_dot

Support of 8 analogous interfaces for voice and fax per FAD
red_dot

ISDN support of voice up to 3 BRI via FAD 9400
red_dot

Interconnection of PABXs via QSIG with FAD 9360 / 9380
red_dot

Up to 50 channels can be supported per 2 Mbps carrier

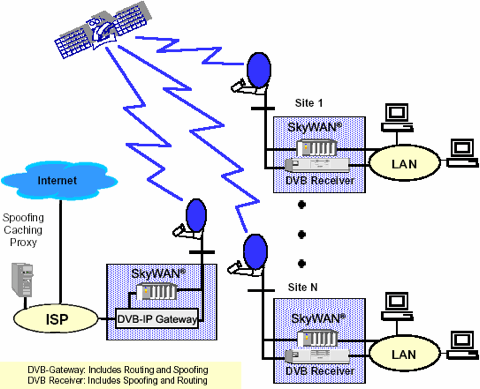

Internet / Intranet Access


internet_access

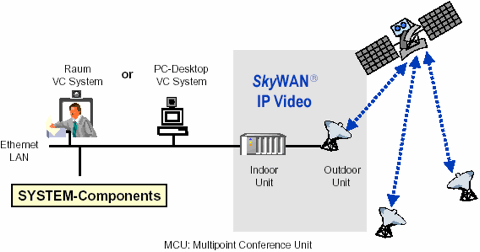

SkyWAN® IP Video Solution


red_dot


LAN access guarantees the full performance of IP video

on corporate network
red_dot


High performance video communication using the best

of class end point equiqment
red_dot


Supports applications with high interactivity such as

Distant / Tele-learning
ip_video_solution

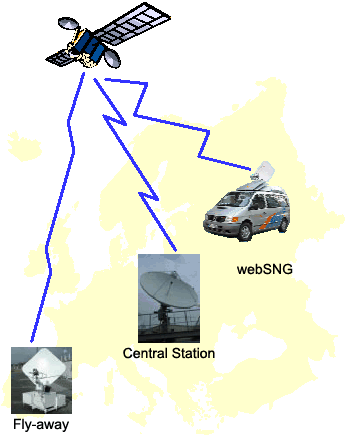

Mobile Terminals


mobile_terminals
Ideal for use as:
red_dot

Fly-away or webSNG
red_dot


Flexible MF-TDMA



Uplinks for

blue_line


Disaster Recovery /



Emergency

blue_line

Oil & Gas
blue_line

Goverment
blue_line

Defence
blue_line

Events e.g. Formula 1


formel1

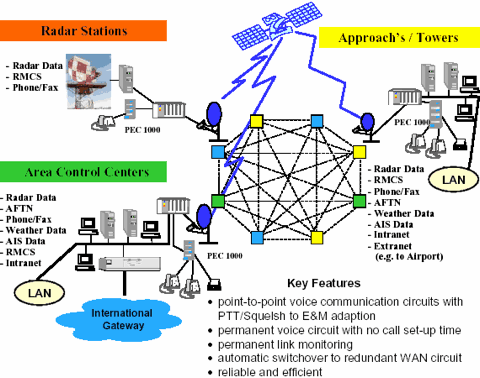

Solutions for Air Traffic Control


air_traffic_control

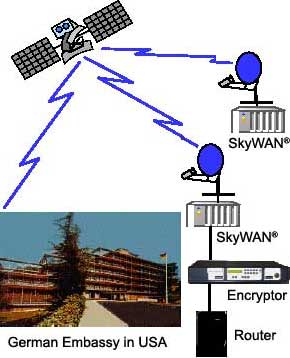

Solutions for Embassies


embassies



Advantages for the User

Fully independent from
any infrastructure
Direct connection
between neighbouring
countries in emergencies
Combination of all services
data, voice, video
Video broadcast for official missions
High security through
ent-to-end encryption
Cost effective through
bandwith and service sharing
Available anywhere, with
high reliability and performance




SkyWAN® Countries


in_over
